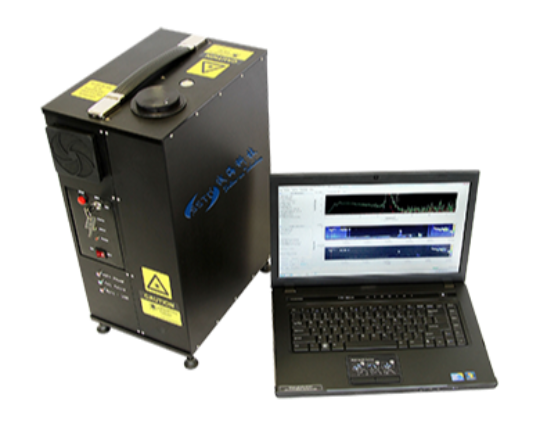

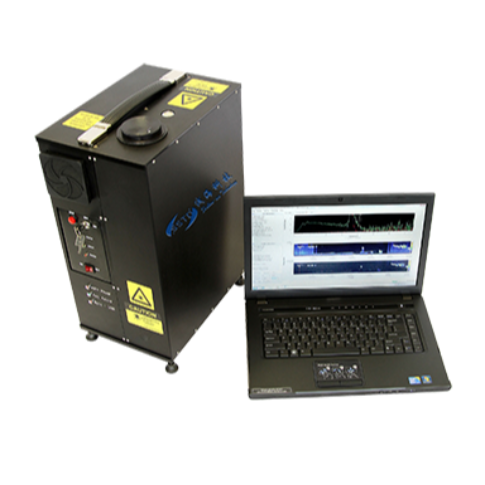

Meter Scatter Aerosol Lidar（MPL-5000)

Home ＞ Products ＞ Environmental Protection Equipments ＞ Black Carbon/Aerosol Monitoring ＞ Meter Scatter Aerosol Lidar (MPL-5000) ＞ Meter Scatter Aerosol Lidar（MPL-5000)

MPL-5000 Scattering Aerosol Observation Lidar can monitor the structure and spatio-temporal evolution characteristics of atmospheric boundary layer (PBL) in real time, understand the physical characteristics and distribution of aerosol particles in the boundary layer, and record the spatio-temporal evolution characteristics and interaction process of aerosol particles and surface pollution.

Product Description MPL-5000 Scattering Aerosol Observation Lidar emits 532nm laser pulses into the atmosphere, and the characteristic parameters of atmospheric aerosol are obtained by receiving the backscattering signal consistent with the wavelength of the laser. The device can monitor the structure and spatio-temporal evolution characteristics of atmospheric boundary layer (PBL) in real time, understand the physical characteristics and distribution of aerosol particles in the boundary layer, and record the spatio-temporal evolution characteristics and interaction process of aerosol particles and surface pollution. Continuous observation of the formation, development, attenuation and dissipation processes of atmospheric aerosols, such as fog and haze, can effectively trace the source of pollution sources through joint application of networking.

Advantage Characteristics

Technical Parameter

Application Scope

Advantage Characteristics

Compatibility: Integrate a variety of internationally renowned meteorological equipment, integrated atmospheric remote sensing network

Reliability: stable work in strict environment, long term unattended operation Accuracy: multiple scientific calibration, can see the molecular layer in clean air

Technical Parameter

Dimensions 318 mm x 216 mm x 495 mm
Weight 12 kg
Range resolution 5/15/30/75m (can be set in the software)
Blind spot 100m
Effective range of detection 100 m—15 km
Laser Power 3 - 4 μJ @ 2500 Hz
Channels two TDM channels with same polarization and orthogonal polarization
Eye Safety ANSI Z136.1 2000, IEC 60825
Supply power 110-240 VAC 50-60 Hz，100 W
Operating environment 10℃—35℃，0—80% RH

Application Scope

Vertical profile and time evolution of extinction coefficient of atmospheric aerosol
Spatial and temporal evolution of PM2.5 mass concentration
Structure and spatiotemporal evolution of atmospheric boundary layer (PBL)
Characteristics of aerosol optical thickness and time evolution
Cloud height, cloud thickness and cloud phase
Atmospheric particle category determination and pollution category determination
Determination of types of air pollution
Monitoring the law of environmental pollution diffusion over the city
